Project #15: Environment – Temperature and Humidity – Mk31

by

——

#DonLucElectronics #DonLuc #DHT11 #ESP32 #Arduino #EEPROM #Display #Elecrow #Project #Patreon #Electronics #Microcontrollers #IoT #Fritzing #Programming #Consultant

——

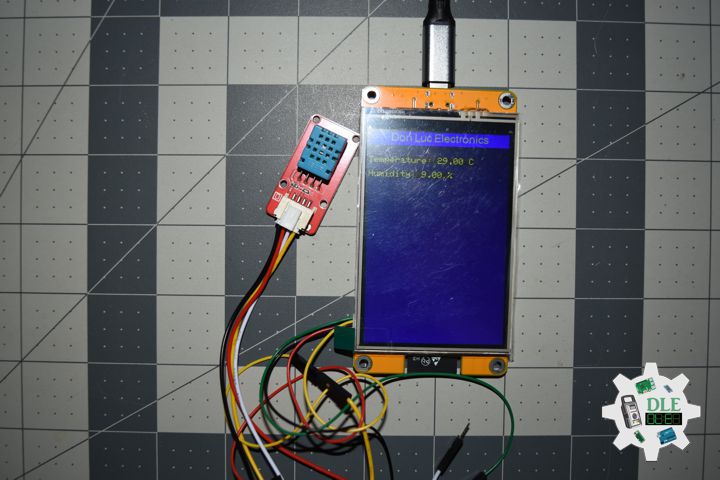

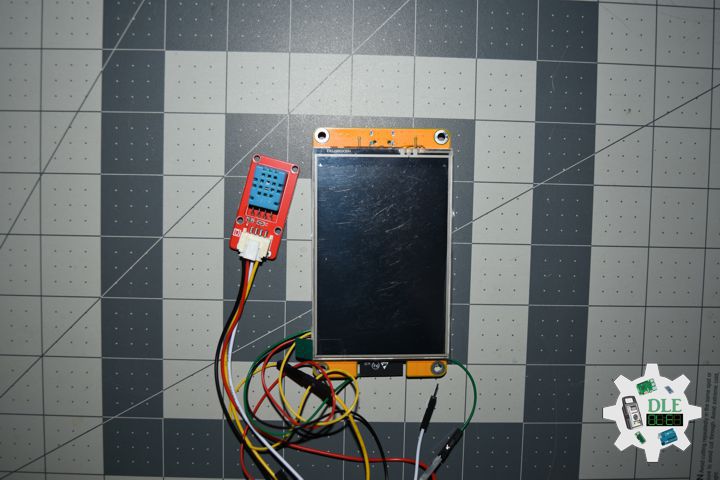

Temperature and Humidity

——

Temperature and Humidity

——

Temperature and Humidity

——

3.5” 320×480 ESP32 LCD Touch Display

This 3.5“ display is a high-performance development module integrates the ESP32 WROOM 32E module. It has powerful development capabilities and rich resources, providing great convenience for developers. It is equipped with a 3.5-inch screen with a resolution of 320 x 480 and supports rich color display of up to 262K colors (RGB666), ensuring clear images and bright colors. The module provides a variety of interfaces, including SPI, UART, etc., which are convenient for connecting various peripherals to meet diverse development needs.

In addition, it supports external speakers to play audio, has its own RGB three-color indicator for rich status indication, and is also equipped with a resistive touch screen for convenient human-computer interaction. It uses a standard TYPE-C interface to facilitate program downloads and power supply, and comes with a micro TF card slot for easy expansion of storage space. It supports external lithium batteries, is lightweight and portable, and has a built-in battery charging management circuit to ensure safe battery charging and discharging. We also provide a wealth of sample programs and technical support to help developers get started quickly. It is suitable for smart home, industrial control and maker projects.

Crowtail – Temperature and Humidity Sensor 2.0

This module can help you detect the temperature and humidity of the environment of your house. The module contains a DHT11 temperature and humidity sensor that is a complex sensor with a calibrated digital signal out. It uses digital module acquisition technology and the temperature and humidity sensor technology. The sensor consists of a resistance-type moisture element and an NTC temperature measuring element. Because of the single-wire serial interface, it is easy to use the module.

DL2506Mk02

1 x 3.5” 320×480 ESP32 LCD Touch Display
1 x Crowtail – Temperature and Humidity Sensor 2.0
1 x USB Battery Pack
1 x USB 3.1 Cable A to C

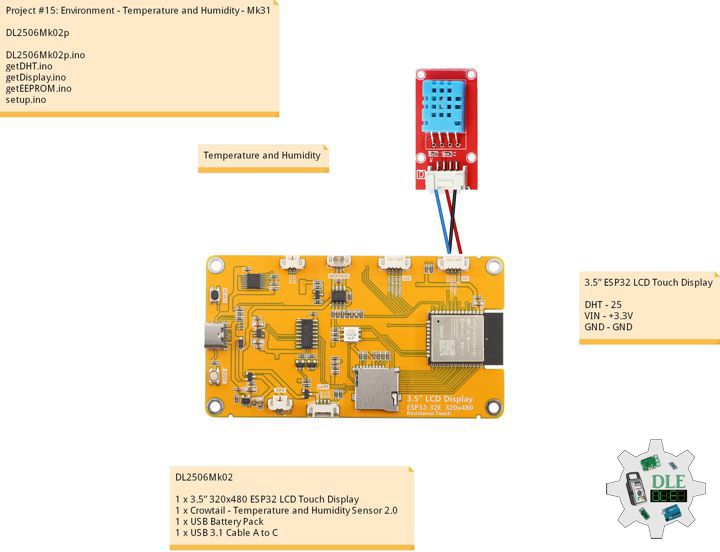

3.5” ESP32 LCD Touch Display

DHT – 25
VIN – +3.3V
GND – GND

DL2506Mk02p

DL2506Mk02p.ino

/****** Don Luc Electronics © ******
Software Version Information
Project #15: Environment - Temperature and Humidity - Mk31
DL2506Mk02p.ino
DL2506Mk02
1 x 3.5” 320x480 ESP32 LCD Touch Display
1 x Crowtail - Temperature and Humidity Sensor 2.0
1 x USB Battery Pack
1 x USB 3.1 Cable A to C
*/

// Include the Library Code
// EEPROM library to read and write EEPROM with unique ID for unit
#include "EEPROM.h"
// TFT Display
#include <TFT_eSPI.h>
// SPI
#include <SPI.h>
// Temperature and Humidity
#include "DHT.h"

// TFT Display
// Invoke custom library with default width and height
// (320x480)
TFT_eSPI tft = TFT_eSPI();
int xpos =  0;
int ypos = 40;

// Temperature and Humidity
// DHT 11
#define DHTTYPE DHT11
#define DHTPIN 25
DHT dht(DHTPIN, DHTTYPE);
// Temperature
float t;
// Humidity
float h;

// EEPROM Unique ID Information
#define EEPROM_SIZE 64
String uid = "";

// Software Version Information
String sver = "15-31";

void loop() {


  // Temperature and Humidity
  // isDHT
  isDHT();

  // Display Temperature and Humidity
  isDisplayDHT();

  // Delay
  delay( 1000 );

}

getDHT.ino

// Temperature and Humidity
// DHT
// isDHT
void isDHT(){

  // Temperature and Humidity
  // Temperature
  t = dht.readTemperature();
  // Humidity
  h = dht.readHumidity();

}

getDisplay.ino

// getDisplay
// 3.5” 320x480 ESP32 LCD Touch Display
// Display UID
void isDisplayUID(){

  // x and y Coordinate
  xpos =  0;
  ypos = 40;

  // TFT Display
  // Clear screen to navy background
  tft.fillScreen(TFT_NAVY);

  // Don Luc Electronics
  // TextSize
  tft.setTextSize(1);
  // Text Color
  tft.setTextColor(TFT_YELLOW, TFT_BLUE);
  // Fill Rectangle
  tft.fillRect(0, 0, 350, 30, TFT_BLUE);
  // Font datum
  tft.setTextDatum(TC_DATUM);
  // Draw String
  tft.drawString("Don Luc Electronics", 160, 2, 4);

  // Text Color
  tft.setTextColor(TFT_YELLOW, TFT_BLACK);
  // Set cursor near top left corner of screen
  tft.setCursor(xpos, ypos);

  // TFT Display
  // TextSize
  tft.setTextSize(2);
  // Move cursor down a line
  tft.println();

  // Software Version Information
  tft.print("Version: ");
  tft.println( sver );
  // Move cursor down a line
  tft.println();
  tft.println();

  // EEPROM
  tft.print("EEPROM: ");
  tft.println( uid );

}
// Display Temperature and Humidity
void isDisplayDHT(){

  // x and y Coordinate
  xpos =  0;
  ypos = 40;

  // TFT Display
  // Clear screen to navy background
  tft.fillScreen(TFT_NAVY);

  // Don Luc Electronics
  // TextSize
  tft.setTextSize(1);
  // Text Color
  tft.setTextColor(TFT_YELLOW, TFT_BLUE);
  // Fill Rectangle
  tft.fillRect(0, 0, 350, 30, TFT_BLUE);
  // Font datum
  tft.setTextDatum(TC_DATUM);
  // Draw String
  tft.drawString("Don Luc Electronics", 160, 2, 4);

  // Text Color
  tft.setTextColor(TFT_YELLOW, TFT_BLACK);
  // Set cursor near top left corner of screen
  tft.setCursor(xpos, ypos);

  // TFT Display
  // TextSize
  tft.setTextSize(2);
  // Move cursor down a line
  tft.println();

  // Temperature
  tft.print("Temperature: ");
  tft.print( t );
  tft.println( " C" );
  tft.println();

  // Humidity
  tft.print("Humidity: ");
  tft.print( h );
  tft.println( " %" );

}

getEEPROM.ino

// EEPROM
// isUID EEPROM Unique ID
void isUID() {

  // Is Unit ID
  uid = "";
  for (int x = 0; x < 7; x++)
  {
    uid = uid + char(EEPROM.read(x));
  }

}

setup.ino

// Setup
void setup()
{

  // Delay
  delay(100);

  // EEPROM Size
  EEPROM.begin(EEPROM_SIZE);

  // isUID EEPROM Unique ID
  isUID();

  // Delay
  delay(100);

  // TFT Display
  tft.begin();
  // Rotation
  tft.setRotation(2);

  // Delay
  delay(100);

  // Temperature and Humidity
  dht.begin();

  // Delay
  delay( 100 );

  // Display UID
  isDisplayUID();

  // Delay 10 Second
  delay( 10000 );

}

——
