Project #6: MicroView – Mk05

MicroView
Project #6 – Mk05

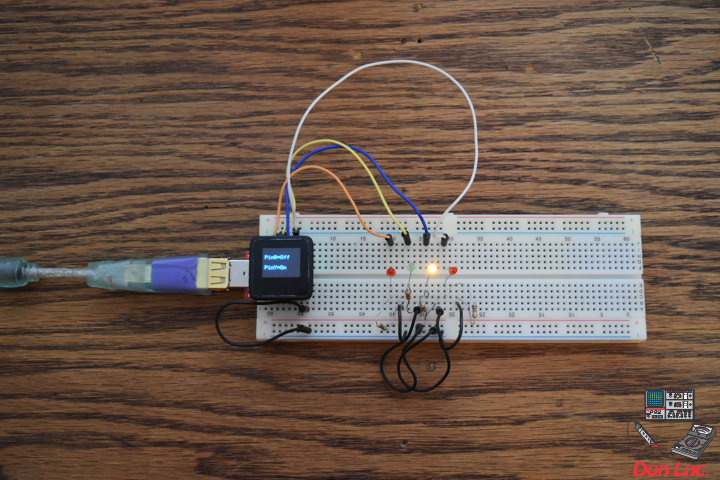

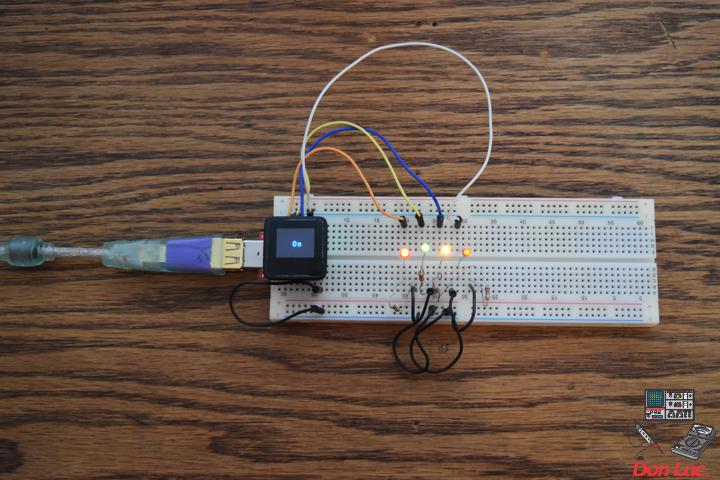

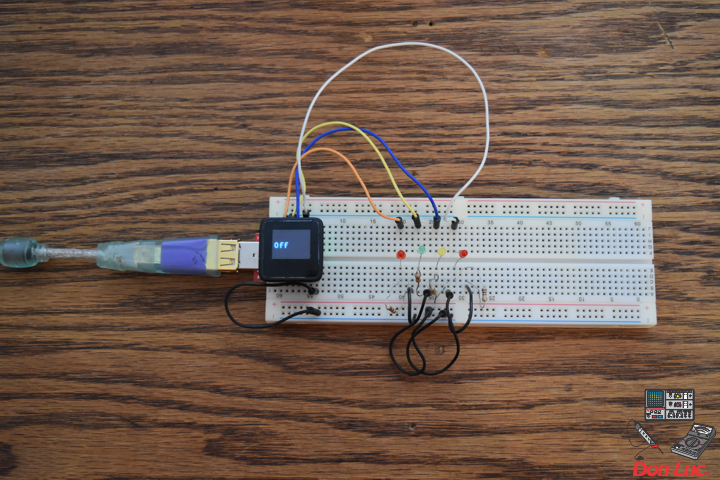

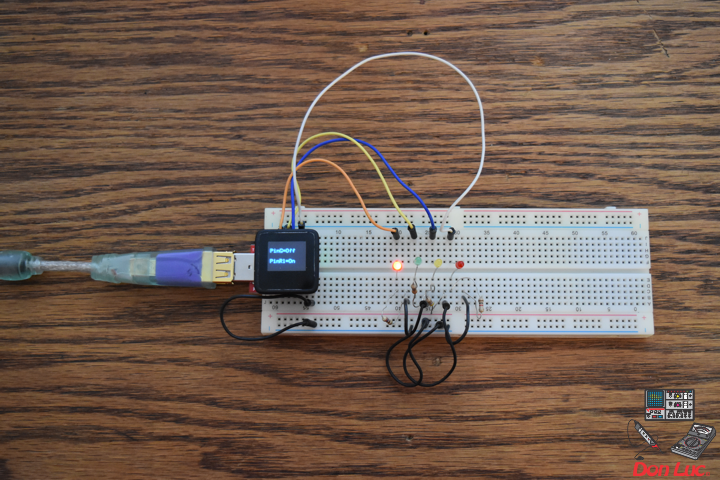

4 x LED

1 x MicroView
1 x MicroView – USB Programmer
1 X Resistor 620 Ohm
1 X Resistor 5 Ohm
1 X Resistor 250 Ohm
1 X Resistor 200 Ohm
1 X 3mm Low Current Red LED – WP710A10LSRD
1 x 3mm Low Current Yellow LED – WP710A10LYD
1 x 3mm Low Current Green LED – WP710A10LGD
1 x 3mm Low Current Red LED – WP710A10LID
9 x Jumper Wires 3″ M/M
1 x Half-Size Breadboard

08 pin – GND
14 pin – 6
13 pin – 5
12 pin – 3
11 pin – 2

DonLuc1804Mk09a.ino

// ***** Don Luc *****
// Software Version Information
// 5.01
// DonLuc1804Mk06 5.01
// MicroView
// 4 x LED

// include the library code:
#include <MicroView.h>

// 4 x LED
int ledPinR = 2;   // select the pin for the LED Red - WP710A10LSRD
int ledPinY = 3;   // select the pin for the LED Yellow - WP710A10LYD
int ledPinG = 5;   // select the pin for the LED Green - WP710A10LGD
int ledPinR1 = 6;   // select the pin for the LED Red - WP710A10LID

void loop() {

  // 4 x LED
  isLED();

  uView.clear(PAGE);

}

getLED.ino

void isLED(){

  digitalWrite(ledPinR, HIGH);  // turn the ledPinR on
  digitalWrite(ledPinY, HIGH);  // turn the ledPinY on
  digitalWrite(ledPinG, HIGH);  // turn the ledPinG on
  digitalWrite(ledPinR1, HIGH);  // turn the ledPinR1 on

  uView.setFontType(1);  // set font type 1: Numbers and letters. 7 characters per line (3 lines)
  uView.setCursor(0,20);
  uView.print( "   On" );
  uView.display();

  delay(5000);
  uView.clear(PAGE);

  digitalWrite(ledPinR, LOW);  // turn the ledPinR off
  digitalWrite(ledPinY, LOW);  // turn the ledPinY off
  digitalWrite(ledPinG, LOW);  // turn the ledPinG off
  digitalWrite(ledPinR1, LOW);  // turn the ledPinR1 off

  uView.setCursor(0,20);
  uView.print( "  Off" );
  uView.display();

  delay(5000);
  uView.clear(PAGE);

  digitalWrite(ledPinR, HIGH);  // turn the ledPinR on

  uView.setFontType(0);  // set font type 0: Numbers and letters. 10 characters per line (6 lines)
  uView.setCursor(0,20);
  uView.print( "PinR=On" );
  uView.display();

  delay(3000);
  uView.clear(PAGE);

  digitalWrite(ledPinR, LOW);  // turn the ledPinR off
  digitalWrite(ledPinY, HIGH);  // turn the ledPinY on

  uView.setCursor(0,10);
  uView.print( "PinR=Off" );
  uView.display();

  uView.setCursor(0,30);
  uView.print( "PinY=On" );
  uView.display();

  delay(3000);
  uView.clear(PAGE);

  digitalWrite(ledPinY, LOW);  // turn the ledPinY off
  digitalWrite(ledPinG, HIGH);  // turn the ledPinG on

  uView.setCursor(0,10);
  uView.print( "PinY=Off" );
  uView.display();

  uView.setCursor(0,30);
  uView.print( "PinG=On" );
  uView.display();

  delay(3000);
  uView.clear(PAGE);

  digitalWrite(ledPinG, LOW);  // turn the ledPinG off
  digitalWrite(ledPinR1, HIGH);  // turn the ledPinR1 on

  uView.setCursor(0,10);
  uView.print( "PinG=Off" );
  uView.display();

  uView.setCursor(0,30);
  uView.print( "PinR1=On" );
  uView.display();

  delay(3000);
  uView.clear(PAGE);

  digitalWrite(ledPinR, LOW);  // turn the ledPinR off
  digitalWrite(ledPinY, LOW);  // turn the ledPinY off
  digitalWrite(ledPinG, LOW);  // turn the ledPinG off
  digitalWrite(ledPinR1, LOW);  // turn the ledPinR1 off

  uView.setFontType(1); // set font type 1: Numbers and letters. 7 characters per line (3 lines)
  uView.setCursor(0,20);
  uView.print( "Off" );
  uView.display();

  delay(3000);
  uView.clear(PAGE);

}

setup.ino

void setup() {

  uView.begin();       // begin of MicroView
  uView.clear(ALL);    // erase hardware memory inside the OLED controller
  uView.display();     // display the content in the buffer memory, by default it is the MicroView logo
  delay(1000);
  uView.clear(PAGE);   // erase the memory buffer, when next uView.display() is called, the OLED will be cleared.

  uView.setFontType(1); // set font type 1: Numbers and letters. 7 characters per line (3 lines)
  uView.setCursor(0,20);
  uView.print("Don Luc");
  uView.display();
  delay(5000);

  uView.clear(PAGE);     // erase the memory buffer, when next uView.display() is called, the OLED will be cleared.

  uView.setFontType(1);  // set font type 1: Numbers and letters. 7 characters per line (3 lines)
  uView.setCursor(0,20);
  uView.print("4 x LED");
  uView.display();
  delay(5000);

  uView.clear(PAGE);

  // ledPinR, ledPinY, ledPinG, ledPinR1
  pinMode(ledPinR, OUTPUT);
  pinMode(ledPinY, OUTPUT);
  pinMode(ledPinG, OUTPUT);
  pinMode(ledPinR1, OUTPUT);

}
